Beha-Amprobe PRM-5-EUR Phase Rotation Tester
- Detect faulty three-phase wiring with de-energised phases and incorrectly wired receptacles
- Functions without a battery
- Protective rubber casing and secured test leads
SKU
4375961
MPN
4375961
The Beha-Amprobe PRM-5-EUR Phase Rotation Tester is ideal for those who install or connect three-phase motors and systems as it can be used to test phase sequence/ rotation in three-phase cables and receptacles.
The Beha-Amprobe PRM-5-EUR Phase Rotation Tester can be used to perform phase sequence tests on electrical systems up to 700V. In addition to quickly detecting phase sequence in three-phase supplies; identifying incorrectly wired receptacles and faulty three-phase wiring with de-energised phases; this test instrument can validate correct connections and (when used with the Beha-Amprobe 1324 Accessory Set, available here) can be used to test CEE 16A and 32A sockets.
The Beha-Amprobe PRM-5-EUR Phase Rotation Tester will indicate the detected phase sequence, or missing/ incorrectly connected outer conductor, via the LED display.
In terms of its own specifications, the Beha-Amprobe PRM-5-EUR Phase Rotation Tester has a voltage range of 100 to 700V; a frequency range of 16 to 400Hz and is compliant with the measurement category CAT IV 600V and the safety standards EN61010 and EN61557.
The Beha-Amprobe PRM-5-EUR Phase Rotation Tester has been optimised for use in both industrial and commercial environments. It does not require a battery to operate; thereby ensuring that it always remains functional. Furthermore, its securely attached test leads and protective rubber housing means that the Beha-Amprobe PRM-5-EUR Phase Rotation Tester is rugged in addition to being versatile and efficient.
Beha-Amprobe PRM-5-EUR Phase Rotation Tester Key Features
- Robust, rugged instrument optimized for testing three-phase systems
- Test phase sequence/ rotation of electrical systems up to 700V
- Identifies incorrectly wired receptacles
- Identifies faulty three-phase wiring with de-energised phases
- Validates correct connections
- Can test CEE 16A and 32A sockets when used with Beha-Amprobe’s 1324 Accessory Set
- Quickly detects phase sequence
- Detected phase sequence or missing/ incorrectly connected conductors indicated via LED display
- 100-700V voltage range
- 16-400Hz frequency range
- CAT IV 600V
- EN61010 and EN61557
- Can be used in industrial and commercial environments
- Does not require a battery
- Securely attached test leads
- Protective rubber housing

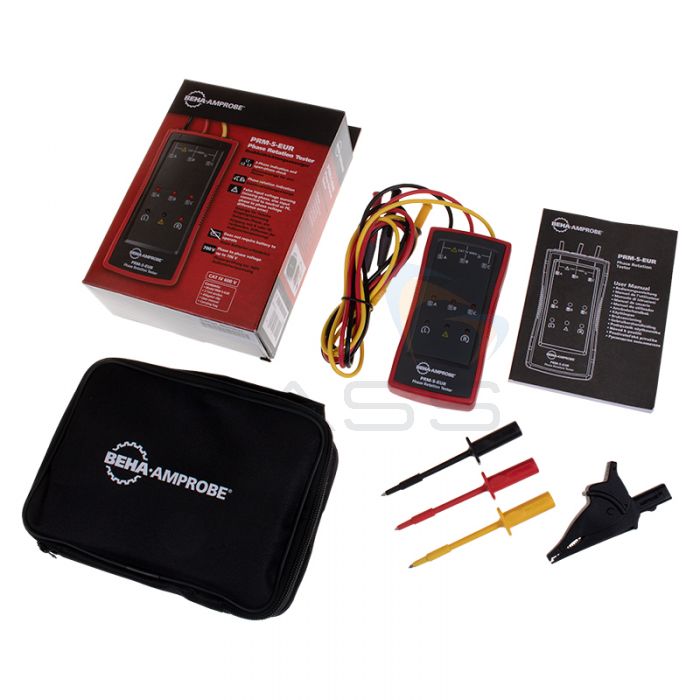

What’s Included?
- Beha-Amprobe PRM-5-EUR Phase Rotation Tester
- 3x Test Leads (non-detachable)
- 1x Alligator Clip
- 1x Carrying Bag
- 1x User Manual
£68.10
£81.72 inc vat
Only 1 in Stock:
Available Next Working Day*
Technical Information
Specification
Beha-Amprobe PRM-5-EUR Phase Rotation Tester Technical Specifications
| 3-Phase Indication and Open-phase Check | LED |
| Phase Rotation Indication | Voltage range (frequency): 100 - 700 V (16 – 400 Hz) Nominal test current: < 3.5 mA |
| Operating Temperture | 0°C to 40°C (32°F to 104°F) |
| Operating Altitude | Up to 2000 m |
| Power | From unit under test |
| Dimensions | 137 x 65 x 33 mm (5.43 x 2.56 x 1.3 in) |
| Weight | PRM-5-EUR: 253 g (0.56 lb) with test leads |
| Product Standard | EN 61557 -1/-7 |
| Electrical Safety | Conforms to EN 61010-1, EN 61010-031, EN 61557-1, EN 61557-7, EN 61326-1 |
| Safety Rating | CAT IV 600V |
Additional Information
SKU
4375961
Manufacturer Part Code
4375961
Country of Origin
China
