Beha-Amprobe 35XP-A Digital Multimeter
Optimised for use in plant maintenance, HVAC and general electrical/electronic applications, the Beha-Amprobe 35XP-A is ideal for testing all basic electrical parameters.
For use in HVAC work, the 35XP-A is capable of measuring temperature up to 1000°C using its included type-K thermocouple and includes special 0.1μA resolution for flame sensor testing. A dedicated capacitance function can also be used to check motor run/start.
The 35XP-A can measure DC voltage up to 1000V, AC voltage to 750V, AC/DC current to 2A, resistance to 40MΩ, capacitance to 400μF, temperature to 1000°C, frequency to 1MHz and can also test continuity/diode. A built-in voltage detector with range of 70V to 600V is built-into the meter and will beep and flash an LED indicator if an energised voltage source is detected.
Need to keep your hands free when testing? The Beha-Amprobe 35XP-A comes with a special Magne-grip holster. This magnetic case is perfect for mounting the meter onto a metallic surface, allowing you to easily hold the tester leads without holding the DMM!
Beha-Amprobe 35XP-A Digital Multimeter Key Features
- DC voltage measurements to 1000V
- AC voltage measurements to 750V
- AC/DC current measurements to 2A
- Resistance measurements to 40MΩ
- Capacitance testing to 400μF
- Temperature measurements to 1000°C (using type K thermocouple - included)
- Frequency measurements to 1MHz
- Continuity/diode testing
- Built-in non-contact voltage detector - range of 70 to 600V with audible tone and visual LED indicators
- Magnetic grip for hands-free use
- Data hold function temporarily freezes a value on the screen
- CAT I 1000V, CAT II 600V and CAT III 300V rated

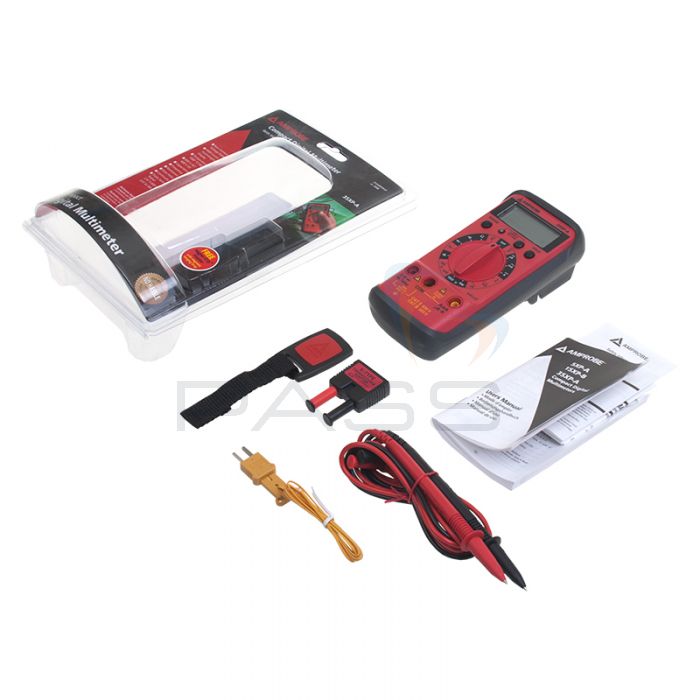

What's Included?
- Beha-Amprobe 35XP-A Digital Multimeter
- TL245A Test Leads
- TP255A K-Type Thermocouple
- XR-TA Temperature Adapter
- 2A/1000V Fuse
- 9V Battery (installed in meter)
- Magne-Grip Holster + Magnetic Hanging Strap
- User Manual
Optional:
- VC30A Carrying Case
- DL243D Test Lead Kit
FREE Oxford Carry Case
- PASS Oxford Black Small Test Equipment Carry Case - PASSCASE-SM, typically £14.99
Beha-Amprobe 35XP-A Technical Specifications
| General Specs | ||
|---|---|---|
| Display | 3-3/4 digit liquid crystal display (LCD) with maximum reading of 3999 | |
| Polarity | Automatic, positive implied, negative polarity indication | |
| Overrange | (OL) or (-OL) is displayed | |
| Zero | Automatic | |
| Low Battery Indication | Symbol displayed when battery voltage drops below operating level | |
| Auto Power Off | Approx 10 minutes | |
| Measurement Rate | 2 times per second, nominal | |
| Operating Environment | 0 to 50°C at <70% RH | |
| Storage Temperature | -20 to 60°C, 0 to 80% RH with battery removed from meter | |
| Accuracy | Stated accuracy at 23°C ± 5°C <75% relative humidity | |
| Temperature Coefficient | 0.1 x (specified accuracy) per °C (0 to 18°C, 28°C to 50°C) | |
| Altitude | 2000m | |
| Power | Single standard 9 volt battery, BEDA 1604, JIS 006P, IEC 6F22 | |
| Battery Life | 150 hours typical with carbon-zinc, 300 hours typical with alkaline | |
| Dimensions (H x W x D) | 155mm x 72mm x 32mm | |
| Weight | Approx 400g including battery | |
| Warranty | One year | |
| Technical Specs | ||
| Measurement Type | Range | Accuracy |
| Voltage | ||
| DC Volts | 400mV, 4V, 40V, 400V, 1000V | ± (0.5 % rdg + 1 dgt) |
| AC Volts (45Hz to 500Hz) | 400mV (45 to 100Hz) 4V, 40V, 400V, 750V |
±(1.5% rdg + 5 dgts) ±(1.5% rdg + 5 dgts) |
| Resolution | 100μV | - |
| Input Impedance | 400mV: >100MΩ; 4V: 10MΩ; 40V to 1000V: 9.1MΩ | - |
| Overload Protection | 1000V DC or 750V AC RMS | - |
| Current | - | |
| DC Current | 400μA, 4000μA, 40mA, 400mA 2A |
±(1.0 % rdg + 2 dgt) ± (2.0% + 3 dgts) |
| AC Current | 400μA, 4000μA, 40mA, 400mA 2A |
± (1.5% rdg + 5 dgts) ± (2.5% rdg + 3 dgts) |
| Resolution | 0.1μA | - |
| Input Protection | 2A/1000V fast blow ceramic fuse 3.6mm x 32mm on A input | - |
| Burden Voltage | 500mV max (2V on 4mA, 400mA ranges) | - |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ 40MΩ |
±(1.0% rdg + 4 dgts) ± (2.0% rdg + 5 dgts) |
| Resolution | 100mΩ | |
| Open Circuit Voltage | -0.45V DC typical (-1.2V DC on 400Ω range) | - |
| Overload Protection | 1000V DC or 750V AC RMS | - |
| Capacitance | 4nF, 40nF, 400nF, 4μF 40μF, 400μF 4mF |
± (5.0% rdg + 30 dgts) ± (5.0% rdg + 5 dgts) ± (5.0% rdg + 15 dgts) |
| Resolution | 1pF | - |
| Test Voltage | <1V | - |
| Test Frequency | 1.3Hz on 4nF to 40μF ranges, 0.7Hz on 400μF, 4mF ranges | - |
| Input Protection | 2A/1000V fast blow ceramic fuse 6.3mm x 32mm on A input | - |
| Temperature | 400 °C, 1000 °C, 400 °F, 1832 °F -20 °C to 10 °C 10 °C to 200 °C 200 °C to 1000 °C -4 °F to 50 °F 50 °F to 400 °F 400 °F to 1832 °F |
- ± (2.0 % rdg + 4 °C) ± (1.0 % rdg + 3 °C) ± (3.0 % rdg + 2 °C) ± (2.0 % rdg + 8 °F) ± (1.0 % rdg + 6 °F) ± (3.0 % rdg + 4 °F) |
| Resolution | 0.1°C, 0.1°F | - |
| Overload Protection | 1000V DC or 750V AC RMS 1000V 600V 300V |
- |
| Frequency | 4k, 40k, 400k, 1M | ±0.1% rdg + 3 dgts |
| Resolution | 1Hz | - |
| Sensitivity | 10Hz to 1MHz: 2.5V rms | - |
| Minimum Pulse Width | <35ns | - |
| Duty Cycle Limits | >30 % and <70 % | - |
| Overload Protection | 1000V DC or 750V AC RMS | - |
| Continuity | - | |
| Audible Indication | Less than 25Ω | - |
| Response Time | 100ms | - |
| Overload Protection | 1000V DC or 750V AC RMS | - |
| Diode Test | - | |
| Test Current | 1.2mA (approx) | ± (1.5% + 3 dgts) |
| Resolution | 1mV | - |
| Open Circuit Voltage | 3.0 DC typical | - |
| Overload Protection | 1000V DC or 750V AC RMS | - |
| Non-Contact Voltage Indicator | If voltage between 70V and 600V is detected beeper chirps and bright red LED switches on |
- |
