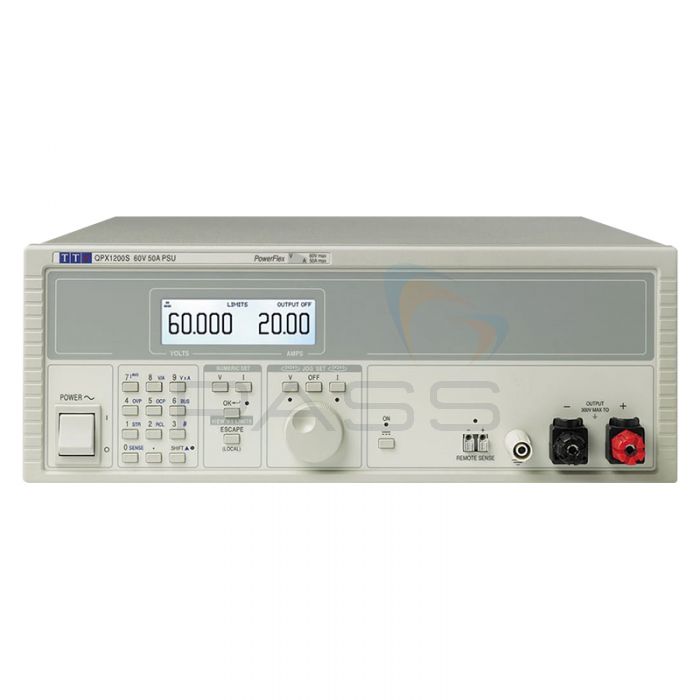

The Aim-TTi QPX1200S Digital Bench Power Supply is a laboratory DC power supply suitable for benchtop and system applications. It has a single channel and a maximum total power output of 1.2kW (1200W).
Conventional PSUs have a fixed current limit, as a result, the power capability reduces directly with the output current; however, the Aim-TTi QPX1200S Digital Bench Power Supply’s PowerFlex design allows it to function as a flexible PSU.
PowerFlex allows the Aim-TTi QPX1200S Digital Bench Power Supply to generate higher currents at lower voltages within its overall power limit envelope. The channel can be set to have an output of up to 60V and up to 50A within its 1200W power envelope. The Aim-TTi QPX1200S Digital Bench Power Supply’s output can provide three times the current of a conventional PSU with the same voltage and power and its wide range of voltage/ current combinations equips it with maximum flexibility.
Additionally, the PowerFlex regulator includes a linear output stage ensuring the Aim-TTi QPX1200S Digital Bench Power Supply has low output noise and good transient response.
In addition to indicating the voltage and current, the Aim-TTi QPX1200S Digital Bench Power Supply can be programmed to display the total power being applied to the load (VxA). Total power is displayed to a resolution of 0.1W.
It is also possible to set the Aim-TTi QPX1200S Digital Bench Power Supply to display the equivalent resistance of the load (voltage divided by current). The Low Resistance function allows resistance measurements to be made at high currents as it uses the remote sense terminals to create a four-terminal connection. This method provides more reliable results for magnets and other components that operate at ampere levels.
Similarly, the Current Meter Averaging function is useful when measuring rapidly changing loads as it stabiles the display by showing the average reading taken from the last four measurements, this reduces the speed and extent of variation.
Measurements are shown via the Aim-TTi QPX1200S Digital Bench Power Supply’s high-resolution, graphic LCD which can be adjusted to display numbers and text in a variety of sizes, allowing the user to tailor the PSU to his/ her requirements. In Standard Display mode, the voltage and current are indicated using large digits and are accompanied by text annotations such as 'CV mode' and 'Output On'.
When changing the settings, the Aim-TTi QPX1200S Digital Bench Power Supply uses a dual display of parameters, allowing the operator to view the existing and new settings simultaneously. Alternatively, the user can view actual or limit values simultaneously.
When configuring complex functions, the Aim-TTi QPX1200S Digital Bench Power Supply provides text prompts or complete selection menus.
The user can configure the voltage and current levels using the numeric keypad. Alternatively, the jog wheel can be used to set voltage and current parameters at user-selectable increments. The Aim-TTi QPX1200S Digital Bench Power Supply has a high setting resolution of 1mV in up to 60V.
The Aim-TTi QPX1200S Digital Bench Power Supply’s output can support variable OVP and OCP trips. When triggered, over-voltage and over-current protection trips will shut off the output and provide a different level of protection.
The output trip can also be activated by other fault conditions such as over-temperature and remote sense miswiring. When the OCP and OVP trips are triggered, the cause of the activation is shown on the display.
Voltage and current settings can be saved to non-volatile stores, this allows parameters to be recalled rapidly which is particularly helpful when using the Aim-TTi QPX1200S Digital Bench Power Supply for repetitive testing.
The Aim-TTi QPX1200S Digital Bench Power Supply is suitable for benchtop or rack-mounted applications. To this end, it is housed in a 350mm-wide (13 ¾”), 3U-high case and features output and remote sense terminals, as well as analogue and logic connectors on the front and rear of the unit. Additionally, an OPTIONAL rack-mounting kit for the Aim-TTi QPX1200S Digital Bench Power Supply is available.
The Aim-TTi QPX1200S Digital Bench Power Supply features analogue interfaces for both output voltage and output current (non-isolated).
The control voltage is digitised and the scaling can be selected between 0 to 5V or 0 to 10V for zero to full scale, enabling control of the PSU. Similarly, monitor outputs for voltage and current are provided and can be selected as 0 to 5V or 0 to 10V.
Additionally, the Aim-TTi QPX1200S Digital Bench Power Supply is equipped with an opto-isolated logic control signal enabling the user to engage and disengage the output. The user can set true to equal output on, or true to equal output off using the menu. In addition to this, an opto-isolated open-collector logic output signal is also available and can be set to true or false for output enabled or disabled, current limit, power limit or any fault trip using the menu.
The Aim-TTi QPX1200S Digital Bench Power Supply is a flexible, simple-to-use and practical PSU suitable for benchtop, system and rack-mounted applications.
Output Specifications | ||
Voltage/Current Levels | Voltage Range | 0V to 60V |
Current Range | 0A to 50A | |
Power Range | Up to 1200W | |
Operating Mode | Constant voltage or constant current with automatic cross-over and mode indication. |
|
Output Setting | Voltage Setting | By floating point numeric entry or rotary jog wheel; resolution 1mV |
Current Setting | By floating point numeric entry or rotary jog wheel; resolution 10mA. | |
Setting Accuracy | Voltage - 0.1% ± 2mV | |
Current - 0.3% ± 20mA | ||
Setting Stores | Up to 10 set-ups can be saved and recalled via the keyboard (or the digital interfaces on QPX1200SP and QPX1200L). |
|
Keyboard & Rotary Control | All functions, including the selection and set-up of the remote control interfaces, can be set from the keyboard. The rotary Jog control can be used to adjust output voltage and current settings in a quasi-analogue mode. The output to be controlled is first selected with the appropriate Control key. | |
Output Performance | Load regulation | <0.01% +5mV (CV mode) for any load change within the PowerFlex envelope, using remote sense. |
Line regulation | <0.01% +5mV for a 10% line voltage change. | |
Ripple & Noise | Typically <3mV rms, <20mV pk-pk, (20MHz bandwidth). | |
Transient Response | <250µs to within 100mV of set level for 5% to 95% load change. | |
Temp. Coefficient | Typically <100ppm/oC. | |
Sensing | Selectable local or remote sensing. | |
Output Protection | External Voltage | Output will withstand forward voltages of up to 70V. Reverse protection by diode clamp |
Power Limit | Automatic protection within PowerFlex control system | |
Fault Trip | The output will be shut down if any of the four trip conditions listed below occur |
|
Over Voltage (OVP) | Settable 2V to 65V in 0.1V steps | |
Over Current (OCP) | Settable 2A to 55A in 0.1A steps | |
Over Temperature | Monitors internal temperature rise to protect against excess ambient temperature or blocked ventilation slots |
|
Sense Error | Monitors the voltage between the remote sense terminals and output terminals to protect against mis-wiring. |
|
Output Switching | Push switch operating electronic power control. LED indication of On state | |
Connection | Output Terminals | Front and rear output terminals. Safety terminals accepting 6mm wire diameter, 6mm plugs or 8mm spades at 50 Amps max, or 4mm plugs at 30 Amps max |
Sensing Terminals | Screw-less terminals on front panel and on rear panel. | |
Metering | ||
Display Type | Large dot-matrix black-on-white backlit LCD. | |
Meter Function | 5 digit voltage meter and 4 digit current meter. Display of limits values, memory contents etc. Wide range of alpha-numeric messages/menus. |
|
Limits Display | Limits settings can be displayed simultaneously with measurements. | |
Meter Resolution | Voltage: 1mV. Current: 10mA | |
Meter Accuracy | Voltage: 0.1% of reading ± 2 digits (CI mode and Unreg) | |
Current: 0.3% of reading ± 2 digits (CV mode and Unreg) | ||
Additional Metering Functions | V x A | Display shows calculated power in watts. Resolution 0.1W. Accuracy 0·5% ± 0·1W |
V/A | Display shows calculated resistance. Resolution up to 5 digits. Measurement uncertainty is shown on display. |
|
Analogue & Logic | ||
Analog Remote Control and Monitoring | Non-isolated inputs and outputs to set voltage and current limit and to monitor actual output voltage and current. These signals are referenced to the negative output and have a range of 0 to 10V or 0 to 5V (selectable via the keyboard). Note that the analogue control voltage is digitised within the power supply. |
|
Control Accuracy | Voltage: 0.3% ± 4mV; Current: 0.5% ± 40mA | |
Monitor Accuracy | Voltage: 0.3% ± 4mV; Current: 0.5% ± 40mA | |
Logic Control Input and Output | LOGIC IN is a rear-panel opto-isolated input that is activated at an input current greater than approximately 1mA. User can set LOGIC IN (via the keyboard) to enable the output, disable the output, or be ignored when it is activated. | |
LOGIC OUT is an isolated rear-panel open-collector output that will sink up to 2mA when activated (‘switch closure’); the maximum voltage that can be applied to LOGIC OUT is 30VDC. User can set LOGIC OUT to be ‘closed’ or ‘open’ for output enabled or disabled, current limit (CI mode), power limit (UNREG mode), or for any fault trip. | ||
Digital Bus Interfaces (QPX1200SP Only) | ||
The QPX1200SP offers full remote control and read-back using RS-232, USB, GPIB or LAN (compliant with LXI class C). All interfaces are at ground potential and opto-isolated from the output terminals. The QPX1200L has USB, RS-232 and LXI compliant LAN only (no GPIB). | ||
RS-232 | Standard 9-pin D connector. Baud rate 9,600. | |
USB | USB 2.0 connection (backwards compatible with USB 1.x). Operates as a virtual COM port. | |
GPIB (IEEE-488) | The interface conforms with IEEE-488.1 and IEEE-488.2. | |
Ethernet (LAN) | Standard 10/100 base-T hardware connection. ICMP and TCP/IP Protocol for connection to Local Area Network or direct connection to a single PC. | |
LXI Compliance | LAN interface is compliant with LXI class C. (LXI is the abbreviation for Lan eXtensions for Instrumentation) | |
Digital Programming Performance (QPX1200SP) | ||
Setting Accuracy and Resolution | As per Manual Control (see Output Setting under Output Specifications) | |
Programming Speed | Command Delay | Typically <100ms between receiving the command terminator for a step voltage change at the instrument and the output voltage beginning to change. |
Driver Software Supplied (QPX1200SP) | ||
IVI Driver | An IVI driver for Windows is supplied. This provides support for common applications such as LabView*, LabWindows*, HPVEE* etc. | |
USB Driver | An installation file is supplied which calls a standard Windows* USB driver. | |
Notes | * LabView and LabWindows are trademarks of National Instruments. HPVEE (now Agilent VEE) is a trademark of Agilent Technologies. |
|
* USB interface is supported for Windows 2000, XP, and Vista. Windows is a trademark of Microsoft | ||
General Specifications | ||
Input | AC Input | 110V to 240V AC ±10%, 50/60Hz. Installation Category II. |
Input Power | 1600VA max. | |
Temperature & Environmental | Operating Range | +5ºC to +40ºC, 20% to 80% RH |
Storage Range | -40ºC to + 70ºC | |
Environmental | Indoor use at altitudes up to 2000m, Pollution Degree 2. | |
Cooling | Intelligent variable-speed fans. | |
Safety & EMC | Safety | Complies with EN61010-1 |
EMC | Complies with EN61326 | |
Physical | Size | 350 x 130 x 413mm (WxHxD) (3U height) . |
Weight | 9.2kg (20lb). | |
Benchtop Operation | Folding legs are incorporated that can be used to angle the front panel upwards when required. |
