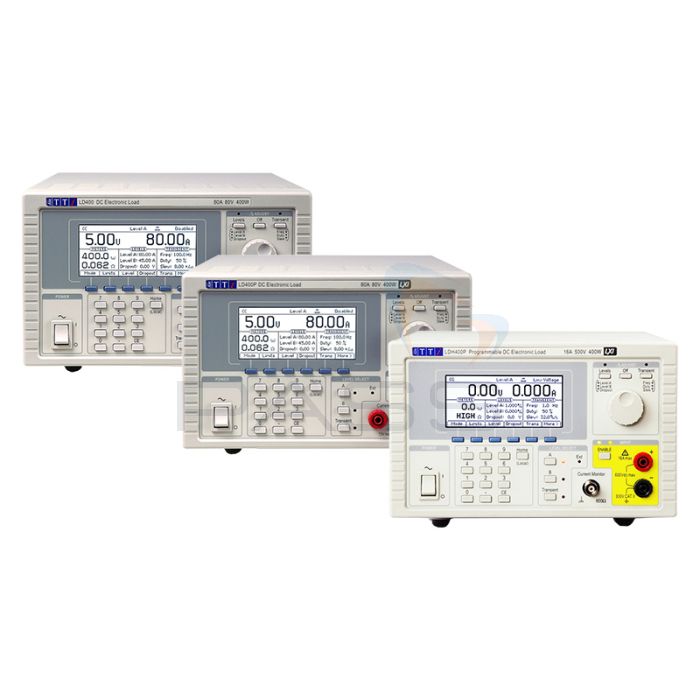

Aim-TTi LD400/P (80V, 80A) / LDH400P (500V, 16A) DC Electronic Load - Choice of Port
- Three models available
- Constant Current, Resistance, Conductance, Voltage, and Power modes
- Built-in transient generator with variable slew
SKU
LDX400X 51153-2XXX
Aim-TTI’s LD400/P and LHD400P series of DC Electronic Loads provide a versatile solution to testing DC power sources. There are three versions available that vary in regards to their voltage and current ranges, as well as their supported interfaces. Please see the table below for more information.
| Model | Voltage | Current | Disipation | Interfaces |
| LD400 | 0 to 80V | 0 to 80A |
400 watts continuous dissipation at 28°C (360W at 40°C) |
Analogue Control Interface. |
|
600 watts short-term dissipation (up to 60 seconds) |
||||
| LD400P | 0 to 80V | 0 to 80A | 400 watts continuous dissipation at 28°C (360W at 40°C) |
Analogue Control Interface and Digital Control Interface. Full bus control via USB, RS232, GPIB and LXI compliant LAN interfaces. |
| 600 watts short-term dissipation (up to 60 seconds) | ||||
| LDH400P | 10 to 500V | 0 to 16A | 400 watts continuous dissipation at 28°C (360W at 40°C) |
Analogue Control Interface and Digital Control Interface. Full bus control via USB, RS232, GPIB and LXI compliant LAN interfaces. |
All models feature constant Current, Resistance, Conductance, Voltage, and Power modes, as well as a built-in transient generator with variable slew, current monitor output for waveform viewing, and variable drop-out voltage for battery testing. The Aim-TTi LD400/P / LDH400P DC Electronic Loads also deliver high-resolution and accuracy for level setting, and support analogue remote control of levels, and TTL control of on/off and transient switching.
Moreover, the Aim-TTi LD400/P / LDH400P DC Electronic Loads include a high-resolution backlit, graphic LCD with soft-key control, and front and rear input terminals.
The Aim-TTi LD400/P / LDH400P DC Electronic Loads are adaptable, easy-to-use, and reliable DC power source testers.
Aim-TTi LD400/P / LDH400P DC Electronic Loads Key Features
- Versatile DC power source testers
- Three versions available: LD400, LD400P, and LDH400P
- LD400: 80V, 80A, 400W continuous dissipation at 28°C, 600W short-term dissipation, analogue control interface only
- LD400P: 80V, 80A, 400W continuous dissipation at 28°C, 600W short-term dissipation, analogue and digital control interfaces (USB, RS232, LAN (LXI) and GPIB)
- LDH400P: 500V, 16A, 400W continuous dissipation at 28°C, analogue and digital control interfaces (USB, RS232, LAN (LXI) and GPIB)
- Constant Current, Resistance, Conductance, Voltage, and Power modes
- Built-in transient generator with variable slew
- Current monitor output for waveform viewing
- Variable drop-out voltage for battery testing
- High-resolution and accuracy for level setting
- Analogue remote control of levels and TTL control of on/off and transient switching
- High-resolution backlit, graphic LCD
- Soft-key control
- Front and rear input terminals
- Adaptable, easy-to-use, and reliable DC power source testers
What’s Included?
- Your Choice of Aim-TTi LD400/P / LDH400P DC Electronic Load
Technical Information
Specification
Aim-TTi LD400/P / LDH400P DC Electronic Loads Technical Specifications
Please see the attached datasheet.
Document Downloads
Aim-TTi LD Series DC Electronic Loads - Datasheet
Aim-TTi LDH400P DC Electronic Load - User Manual
Aim-TTi LD400 & LD400P DC Electronic Loads - User Manual
