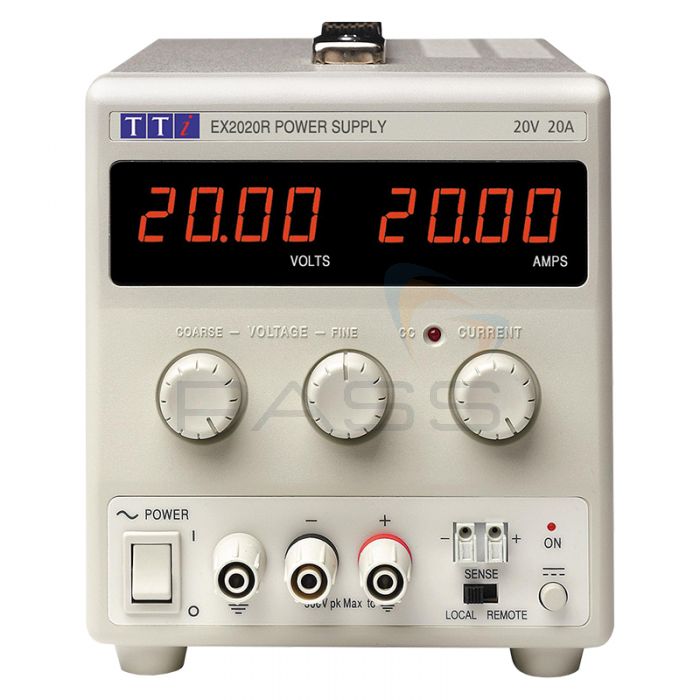

Aim-TTi EX2020R Digital Bench Power Supply – 400W, 1 Output
- Fan-assisted cooling: low-noise, brushless DC fan with intelligent control
- Switchable remote sense terminals
- Large, backlit, four-digit display with a fixed resolution
SKU
51153-5000
MPN
51153-5000
The high-power Aim-TTi EX2020R Digital Bench Power Supply is a single-output, benchtop, laboratory PSU capable of supplying a maximum power output of 400W. It has a voltage output range of 0 to 20V and a current output range of 0 to 20A.
Constant Voltage or Constant Current
The Aim-TTi EX2020R Digital Bench Power Supply’s output can operate in either Constant Voltage or Constant Current mode; it features a mode indicator and automatic crossover.
Simple-To-Use
Voltage levels can be set quickly and precisely using coarse and fine analogue controls. The Aim-TTi EX2020R Digital Bench Power Supply’s logarithmic current control ensures low currents can be set accurately.
DC On/Off Switch
Preset currents and voltages can be viewed before connecting the load using the output’s DC On/Off switch.
Four-Digit Display
Voltage and current data are indicated on the Aim-TTi EX2020R Digital Bench Power Supply’s large, bright, four-digit display. It has a fixed resolution of 10mV and 10mA, improving precision and preventing misinterpretation of readings.
Remote Sensing
In addition to a dedicated DC On/Off switch, the Aim-TTi EX2020R Digital Bench Power Supply’s output includes remote sense terminals with a dedicated switch enabling activation and deactivation: when the switch is set to Local, the remote sense terminals are deactivated.
The Aim-TTi EX2020R Digital Bench Power Supply’s remote sense terminals ensure true metering of the load voltage and precise regulation at the load.
Mixed-Mode Regulation
Similarly, the Aim-TTi EX2020R Digital Bench Power Supply’s Mixed-Mode Regulation equips it with excellent line and load regulation, low noise, and good transient response. It also ensures that the Aim-TTi EX2020R Digital Bench Power Supply can provide performance comparable to that of a PSU with an all-linear design; to this end, Mixed-Mode Regulation combines high-frequency, switch-mode regulation, and linear post-regulation.
Output
To ensure compliance with the safety regulations of most laboratories, the Aim-TTi EX2020R Digital Bench Power Supply’s output terminal has been designed to accept 4mm safety plugs with rigid insulating sleeves. However, this terminal can also accept fork connections and bare wires, ensuring maximum flexibility.
Furthermore, the Aim-TTi EX2020R Digital Bench Power Supply’s output is intrinsically short-circuit-proof and is protected against external voltages and reverse currents.
Quiet Cooling
The Aim-TTi EX2020R Digital Bench Power Supply features fan-assisted cooling. It utilises a low-noise, brushless DC fan with intelligent control.
The Aim-TTi EX2020R Digital Bench Power Supply is a high-power, precise and practical PSU optimised for benchtop, and laboratory applications.
Aim-TTi EX2020R Digital Bench Power Supply Key Features
- Single-output, benchtop, laboratory PSU
- Maximum power output: 400W
- Voltage output range: 0 to 20V
- Current output range: 0 to 20A
- Constant Voltage and Constant Current modes with automatic crossover and mode indication
- Coarse and fine analogue controls for setting voltage levels accurately and quickly
- Logarithmic current control for setting low currents precisely
- DC On/Off Switch: view preset currents and voltages before connecting the load
- Large, backlit, four-digit display
- Fixed resolution: 10mV and 10mA
- Fixed resolution improves precision and prevents misinterpretation
- Remote sense terminals with a dedicated switch for activation and deactivation
- Remote sense terminals ensure true metering of the load voltage and precise regulation at the load
- Mixed-Mode Regulation provides excellent line and load regulation, low noise, and good transient response
- Mixed-Mode Regulation provides a performance comparable to that of PSUs with an all-linear design
- Mixed-Mode Regulation: combines high-frequency, switch-mode regulation and linear post-regulation
- Output terminal designed to accept 4mm safety plugs with rigid insulating sleeves, fork connections, and bare wires
- The output is intrinsically short-circuit-proof
- The output is protected against external voltages and reverse currents
- Fan-assisted cooling: low-noise, brushless DC fan with intelligent control
- High-power, precise and practical PSU optimised for benchtop, and laboratory applications
What’s Included?
- Aim-TTi EX2020R Digital Bench Power Supply – 400W, 1 Output
Technical Information
Specification
Aim-TTi EX-R Digital Bench Power Supplies Technical Specifications
| EX-R Model Range | |||
| Voltage/Current Levels | EX355R | 0 to >35V; 0 to >5A | (175W nominal power) |
| EX1810R | 0 to >18V; 0 to >10A | (180W nominal power) | |
| EX2020R | 0 to >20V; 0 to >20A | (400W nominal power) | |
| EX4210R | 0 to >42V; 0 to >10A | (420W nominal power) | |
| EX354RD | 2 x (0 to >35V; 0 to >4A) | (280W nominal power | |
| EX354RT | 2 x (0 to >35V; 0 to >4A) plus <1.5 to >5.0V @ 5A | (305W nominal power | |
| Output Specifications | |||
| Output Setting & Control | Voltage Setting | By coarse and fine controls. | |
| Current Setting | By single logarithmic control | ||
| Output Mode | Constant voltage or constant current with automatic cross-over. CC indicator lit in constant current mode. |
||
| Output Switch | Electronic, non-isolating. Preset voltage and current limit are displayed when the Output is off. On state indicated by LED. | ||
| Output Performance | Ripple & Noise | Typically <2mV rms, <10mV pk-pk (EX355R, EX354RD, EX354RT) | |
| Typically <2mV rms, <20mV pk-pk (EX1810R, EX2020R, EX4210R) (CV mode, 20MHz bandwidth) | |||
| Load Regulation | <0·01% of maximum output for a 90% load change (using remote sense). | ||
| Line Regulation | <0·01% of maximum output for 10% line change | ||
| Transient Response | <200µs to within 50mV of the setting for a 5% to 95% load change. | ||
| Temp. Coefficient | Voltage: typically <100ppm /°C. | ||
| Output Protection | Outputs will withstand forward voltages up to 40V (EX355R, EX354RD, & EX354RT); 22V (EX1810R); 25V (EX2020R); 48V (EX4210R). Reverse protection by diode clamp for currents to 3A. |
||
| Output Connections | Output Terminals | Universal 4mm safety binding posts on 19mm (0·75”) spacing | |
| Note | Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals, and bare wires | ||
| Remote Sense | Sense Selection | Voltage sensing is selected as Local or Remote by the front panel switch. | |
| Sense Terminals | Sprung loaded screw-less terminals | ||
| Meter Specifications | |||
| Display Type | Dual 4-digit meters, 14mm (0·56”) LED | ||
| Voltage Meter | Resolution | 10mV | |
| Accuracy | 0·3% of reading ± 3 digits | ||
| Current Meter (EX355R, EX354RD, EX354RT) | Resolution | 1mA | |
| Accuracy | 0·5% of reading ± 3 digits | ||
| Current Meter (EX1810R, EX2020R, EX4210R) | Resolution | 10mA | |
| Accuracy | 0·6% of reading ± 3 digits | ||
| Auxiliary Output (EX354RT only) | |||
| Voltage | Variable <1.5V to >5V by front panel control. | ||
| Meter accuracy | 0.3% ± 4 digits. | ||
| Current limit | 5A minimum | ||
| Load regulation | <0.5% for 90% load change. | ||
| Line regulation | <0.1% for 10% line voltage change | ||
| Ripple & Noise | Typically <2mVrms, <10mVpk-pk (20MHz bandwidth) | ||
| Output Protection | Output will withstand up to 7V forward voltage. Diode clamp reverse protection for currents up to 3A |
||
| Output Terminals | Universal 4mm safety binding posts on 19mm (0·75”) spacing | ||
| Status Indication | UNREG lamp | ||
| General Specifications | |||
| Input | AC Input | EX354RD, EX354RT - 110V to 240V 50/60Hz (universal input); Other Models - 230V AC ± 10% 50/60Hz; 115V to order. Installation Category II |
|
| VA Ratings |
EX810R, EX355R - 400VA; EX354RD, EX354RT - 500VA EX2020R, EX4210R - 800VA |
||
| Temperature & Environmental | Operating Range | +5ºC to +40ºC, 20% to 80% RH | |
| Storage Range | -40ºC to + 70ºC | ||
| Environmental | Indoor use at altitudes up to 2000m, Pollution Degree 2 | ||
| Cooling | EX1810R, EX355R, EX354RD, EX354RT - fan-less convection cooling; EX2020R, EX4210R - fan assisted using low-noise brushless dc fan. |
||
| Safety & EMC | Safety | Complies with EN61010-1 | |
| EMC | Complies with EN61326 | ||
| Physical | Size | Single output models - 140x160x320 mm (WxHxD). Dual and triple output models - 260x160x320 mm (WxHxD) |
|
| Weight | EX810R, EX355R - 3.0kg; EX2020R, EX4210R - 3.6kg EX354RD, EX354RT - 4.3kg |
||
