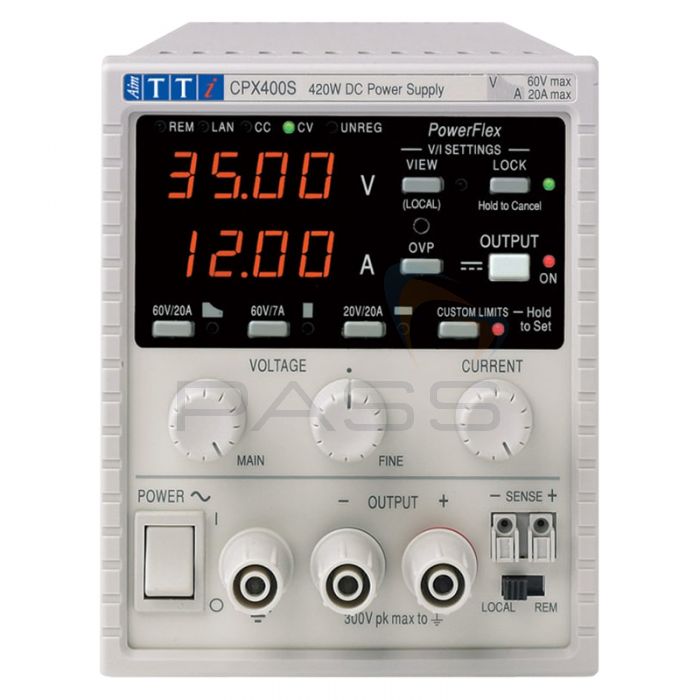

Aim-TTi CPX400SP Digital Bench/ System DC Power Supply - 420W, 1 Output
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply is a flexible laboratory power supply with a maximum power output of 420W, maximum voltage output of 60V, and maximum current output of 20A.
PowerFlex Design
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply’s PowerFlex design provides variable voltage and current combinations within the maximum power envelope. It enables higher currents to be generated at lower voltages. The output can operate in constant voltage or constant current mode with crossover and includes a mode indicator, as well as over-voltage protection.
Additionally, to provide a good transient response and low noise, the PowerFlex regulation system includes a high-frequency pre-regulator which operates in conjunction with a linear post regulator.
Analogue Control with Digital Stability
Current and voltage levels are set using simple analogue controls; the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply features coarse and fine voltage controls and a logarithmic current control for setting low currents accurately. To prevent drift and/or accidental alteration, the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply includes an S-Lock button which transfers control of voltage and current from the analogue dials to the internal digital circuitry. Settings can be viewed and altered as required using the View Settings button.
Precision Metering and Remote Sense
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply’s voltage and current meter has a four-digit display and a fixed resolution of 10mV/ 10mA. The fixed resolution prevents the misreading of results which is common when using auto-ranging 3/3.5-digit meters and allows the user to see accurate and consistent readings at a glance.
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply also includes a remote sense terminal at the output to enable precise regulation at the load and true metering of the load voltage. The remote sense terminal can be enabled and disabled as required.
Fixed Power Supply
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply includes a Fixed Power Supply mode. When engaged this PSU can be used as a fixed power supply at 60V/7A or 20V/20A. The Fixed Power Supply mode ensures that the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply remains in constant current or constant voltage mode despite the load and improves the resolution of the voltage and current controls.
Further to this, the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply includes an option to customise the voltage and current limits, allowing the user to set the PSU to cover the exact range required. This improves the ease of setting up the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply and reduces the possibility of error.
Ergonomic Design
Compact (housed in a ¼ rack width 3U high case) and equipped with power and sense terminals on both the front and back of the unit, the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply is ideal for use on crowded laboratory benches and for rack-mount applications.
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply also features support for RS-232, USB, LAN (LXI) and GBIP interfaces, enabling digital remote control. The digital bus interfaces provide full control of voltage, current and output on/off, as well as read-back of voltage, current and status. This PSU also includes an IVI driver for Windows enabling support for high-level applications such as LabView, LabWindows and HP/ Agilent VEE.
Finally, the Aim-TTi CPX400SP Digital Bench/ System DC Power Supply includes safety binding posts capable of accepting normal plugs, bare wires and fork connectors as well as fixed-shroud 4mm plugs. The limited opening length and raised insulated shoulders ensures the binding posts are touch-proof up to 250V.
The Aim-TTi CPX400SP Digital Bench/ System DC Power Supply is a versatile, easy-to-use and precise fixed and flexible power source unit.
Aim-TTi CPX400SP Digital Bench/ System DC Power Supply Key Features
- Flexible laboratory power supply
- Maximum power output: 420W
- Maximum voltage output: 60V
- Maximum current output: 20A
- PowerFlex design provides variable voltage and current combinations within the maximum power envelope
- Higher currents can be generated at lower voltages
- The output can operate in constant voltage or constant current mode with crossover and mode indicator
- Over-voltage protection
- PowerFlex regulation system provides a good transient response and low noise
- PowerFlex regulation system includes a high-frequency pre-regulator and linear post regulator
- Coarse and fine voltage controls
- Logarithmic current control for setting low currents accurately
- S-Lock prevents accidental alteration and drift by transferring control of the voltage and current from the analogue dials to the digital circuitry
- S-Lock provides the ease of analogue control and the precision and stability of digital operation
- Four-digit display
- Fixed 10mV/ 10mA resolution prevents misinterpretation of results
- See accurate and consistent readings at a glance
- Fixed Power Supply mode: 60V/ 7A and 20V/ 20A
- Fixed Power Supply mode ensures the PSU remains in constant current or constant voltage mode despite the load
- Fixed Power Supply mode improves the resolution of the voltage and current controls
- Voltage and current limits can be customised to suit the application
- Compact: housed in a ¼ rack with 3U high case
- Equipped with power and sense terminals on the front and back
- Suitable for use on crowded benches
- Suitable for rack-mount applications
- Supports RS-232, USB, LAN (LXI) and GBIP interfaces
- Digital remote control via the aforementioned interfaces
- Digital bus interfaces provide full control of voltage, current and output on/off, and read-back of voltage, current and status
- IVI driver for Windows
- IVI driver supports LabView, LabWindows and HP/ Agilent VEE
- Safety binding posts can accommodate normal plugs, bare wires, fork connections and fixed-shroud 4mm plugs
- Binding posts are touch-safe to 250V
- Versatile, easy-to-use and precise fixed and flexible power source unit
What’s Included?
- Aim-TTi CPX400SP Digital Bench/ System DC Power Supply
Aim-TTi CPX400 Series Digital Bench/ System DC Power Supply Technical Specifications
| Output Specifications (each output) | |
| Voltage/Current/Power Levels | Voltage Range:0V to 60V |
| Current Range:0A to 20A | |
| Power Range:Up to 420W subject to power envelope. | |
| Note | Actual maxima for voltage and current are typically 1% greater than the figures given above. |
| Power Envelope | The maximum current atany voltage settings is limited by the power envelope which is set to give 7A at 60V rising to 20A at 20V under all ac supply conditions (both outputs loaded). At lower output voltages the power is restricted by the 20 amps current maximum. |
| Output Setting and Control | Voltage Setting: By coarse and fine controls |
| Current Setting: By single logarithmic control | |
| Output Mode:Constant voltage or constant current with automatic cross-over. CC indicator lit in constant current mode |
|
| Output Switch:Electronic, non isolating. Preset voltage and current limit displayed when Output is off. Output rise time no load <10ms. |
|
| View Settings: With the output On, the meters show actual voltage and current. The preset levels can be viewed and adjusted at any time by pressing the View Settings button |
|
| Status Indication:LED indication of Output On, V/I Limits, CV, CI, Power Limit, Remote, LAN status. Message on meter display for trip condition. |
|
| S-Lock | (Settings Lock) Voltage and current settings can be locked by a single button press. Lock accuracy is equal to the meter accuracy (see Meter Specifications). |
| Output Performance | Ripple & Noise:Typically <3mV rms, <15mV pk-pk, (5mV rms max.) in CV mode. |
|
Load Regulation: Voltage - <0·01% of maximum output for any load change within Current - <0·05% of maximum output for any load change within |
|
|
Line Regulation: Voltage - <0·01% of maximum output for a 10% line change. Current - <0·01% of maximum output for a 10% line change. |
|
| Transient Response: <250µs to within 50mV of setting for a 5% to 95% load change. | |
| Temp. Coefficient: Typically <100ppm/°C | |
| Output Protection | Output Protection: Forward protection by Over-voltage Protection (OVP) trip. Reverse protection by diode clamp for currents to 3A. |
| OVP Setting/Range: Via screwdriver adjustable preset on front panel. Range 1V to 66V | |
| Over-temperature: Output trips off for over-temperature. | |
| Safety Interlocks: Operations that could cause an unexpected change in voltage or current settings are interlocked with the output switch. |
|
| Output Connections | Output Terminals:Universal 4mm safety binding posts on 19mm (0·75”) spacing at front. Screw terminals at rear (CPX400SA, SP & DP only). |
| Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals and bare wires. | |
| Remote Sense | Sense Selection: Voltage sensing is selected as Local or Remote by front panel switch. |
| Sense Terminals: Sprung loaded screw-less terminals at front. Screw terminals at rear (CPX400SA, SP & DP only). |
|
| Meter Specifications (each output) | |
| Display Type | Dual 4-digit meters, 10mm (0·39”) LED |
| Voltage Meter | Resolution/ Accuracy: 10mV / ± 0·1% of reading ± 2 digits |
| Current Meter | Resolution/ Accuracy: 10mA / ± 0·3% of reading ± 20mA |
| Voltage Tracking (CPX400D & DP) | |
| Independent Mode | In the normal mode of operation, each output is fully independent and isolated. Operation is equivalent to two single output power supplies. |
| Voltage Tracking Mode | The two outputs remain isolated, but the Slave voltage controls are disabled and the Slave voltage is set equal to the Master voltage. This can be used to generate tracking bipolar voltages, or tracking unipolar voltages relative to different grounds. When voltages greater than 60V are required, the outputs can be wired in series to generate 0 to 120V with the voltage controlled from the Master. When currents greater than 20A are required, the outputs can be wired in parallel to create the equivalent of a 40A power supply with the voltage controlled from the Master. Track Accuracy: Slave voltage = ± (0·1% of Master voltage setting + 10mV) |
| Both On/ Both Off (CP400D & DP) | Each output has an independent DC On/Off control, however, an additional control button is provided which turn both outputs on or off simultaneously. |
| Analogue Remote Interface (CPX400SA Only) | |
| The CPX400SA offers galvanically isolated analogue remote control of voltage and current from control voltages. Voltage and current front panel settings generate non-isolated analogue output voltages that can be used to control slave power supplies. |
|
| Input Scaling | 0 to 100% control of voltage or current from 0 to 5V or 0 to 10V (selectable) |
| Input Accuracy | Voltage: 0.3% ±20mV. Current: 0.5% ±50mA. Input impedance 10KΩ |
| Output Scaling | Set values of 0 to 100% of rated output voltage and current generate 0 to 5V (not isolated) |
| Output Accuracy | Voltage: 0.3% ±20mV. Current: 0.5% ±50mA. Output impedance 125Ω |
| Remote On/Off | Output On/Off can be controlled by external switch closure (not isolated) |
| Digital Bus Interfaces (CPX400SP & CPX400DP) | |
| The CPX400SP & CPX400DP offers full remote control and read-back using RS-232, USB, GPIB or LAN (compliant with LXI class C). All interfaces are at ground potential and opto-isolated from the output terminals. Note: Remote/Local Sense, is manually selectable only. |
|
| RS-232 | Standard 9-pin D connector. Baud rate 9,600. |
| USB | USB 2.0 connection (backwards compatible with USB 1.x). Operates as a virtual COM port. |
| GPIB (IEEE-488) | The interface conforms with IEEE-488.1 and IEEE-488.2. |
| Ethernet (LAN) | Standard 10/100 base-T hardware connection. ICMP and TCP/IP Protocol for connection to Local Area Network or direct connection to a single PC. |
| LXI Compliance | LAN interface is compliant with LXI class C. (LXI is the abbreviation for Lan eXtensions for Instrumentation). |
| Digital Programming Performance (CPX400SP & DP only) | |
| Voltage Setting | Resolution/Accuracy: 1mV / ± (0.05% +10mV) |
| Current Setting | Resolution/Accuracy: 1mA / ± (0.3% +5mA) |
| Programming Speed | Command Delay: Typically <25ms (this must be added to any of the figures below) |
| Voltage Up Time: <10ms* to 1% | |
| Voltage Down Time: <80ms* to 1% (full load); <1.5s* to 1% (no load) | |
| * The up and down times vary with range and voltage step size. | |
| General Specifications | |
| Input | AC Input: 110 to 240 volts ±10% 50/60Hz. Installation Category II. |
| Input Power: Single - 625VA, Dual - 1250VA max. | |
| Temperature & Environmental | Operating Range: +5ºC to +40ºC, 20% to 80% RH |
| Storage Range: -40ºC to + 70ºC | |
| Environmental: Indoor use at altitudes up to 2000m, Pollution Degree 2. | |
| Cooling: Rear discharge variable speed fan. | |
| Safety & EMC | Safety: Complies with EN61010-1 |
| EMC: Complies with EN61326 | |
| Physical |
Size: Single - 107 x 130 (¼ rack 3U) x 398mm Dual - 210 x 130 mm (½ rack 3U) x 377mm |
| Weight: Single - 4.25kg (9.35lb), Dual - 6.3kg (13.9lb) | |
| Driver Software Supplied (CPX400SP & DP) | |
| IVI Driver | An IVI driver for Windows is supplied. This provides support for common applications such as LabView*, LabWindows*, HPVEE* etc. |
| USB Driver | An installation file is supplied which calls a standard Windows* USB driver. |
| Notes | * LabView and LabWindows are trademarks of National Instruments. HPVEE (now Agilent VEE) is a trademark of Agilent Technologies. |
| * USB interface is supported for Windows 2000 and above. Windows is a trademark of Microsoft. |
|
Accessories related to this product:
Reviews
Additional Information
| SKU | 51153-8800 |
|---|---|
| Manufacturer Part Code | 51153-8800 |
